Reliability in industrial control board assembly is not something an EMS provider can inspect into the product at the end of the line.
It starts earlier than that.
A reliable industrial control board depends on controlled component sourcing, a stable PCB assembly process, proper handling of connectors and through-hole parts, practical test coverage, traceable production records, and enough mechanical awareness to make sure the board can work inside real equipment.
For OEM buyers, the key question is not only, "Can this supplier assemble the board?"
The better question is: "Are the assembly requirements clear enough for the board to be built, tested, repeated, and supported in its real operating environment?"
That distinction matters because industrial control boards often live inside PLC modules, motor control systems, I/O boards, industrial computers, gateways, power controllers, machine panels, and cabinet-mounted equipment. A board may pass a basic power-on check and still be weak in the field if connector stress, sourcing changes, soldering process, firmware loading, thermal behavior, test access, or traceability is not controlled.
In practice, reliable industrial control board assembly works like a controlled build chain. When one requirement is vague, the whole build becomes harder to trust.
Start with the Real Operating Role, Not a Generic "Industrial Grade" Label
Industrial control boards are not all the same.
Some boards only handle signal conversion. Others switch relays, drive outputs, or communicate with PLCs, sensors, gateways, industrial computers, and higher-level control systems. Some sit inside a climate-controlled cabinet. Others work near motors, power supplies, vibration, heat, dust, or field wiring.
The assembly requirement should follow the board's role.
A low-risk interface board may need standard SMT PCB Assembly, automated optical inspection, visual inspection, and basic electrical confirmation. A control board with relays, terminal blocks, firmware, field wiring, communication ports, or power sections may need a more detailed build plan.
This is where many projects go wrong. Buyers sometimes describe a board as "industrial grade" without defining what that means in production terms.
A better RFQ should clarify:
- where the board will be used
- whether the board is part of a control cabinet, machine, module, or embedded device
- what electrical, thermal, or mechanical stress the board may see
- whether firmware programming is required
- whether field wiring or cable harnesses connect directly to the PCBA
- what level of inspection and functional test is expected
- whether repeat orders must follow the same revision and sourcing rules
"Industrial grade" is not a build instruction. The application has to be translated into assembly requirements.

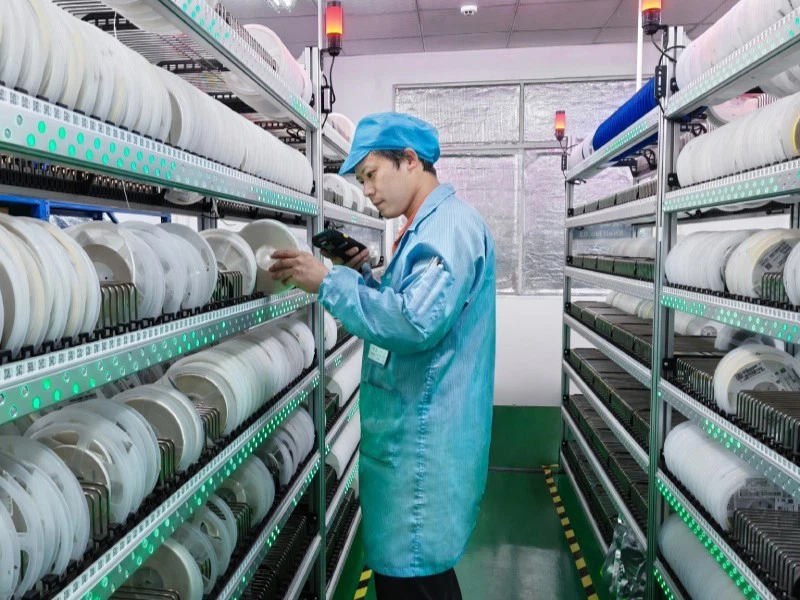

Control the BOM Before It Becomes a Production Risk
For industrial control boards, component sourcing is part of reliability.
A BOM is not only a purchase list. It controls whether the same board can be built again, tested the same way, and supported later if a field issue appears.
This matters because industrial control boards often use parts that cannot be replaced casually: terminal blocks, relays, optocouplers, power devices, isolated interface ICs, communication chips, industrial connectors, and customer-specified components.
A substitute connector may fit the PCB footprint but change field wiring behavior.
A relay may match the package but behave differently under load.
A power component may be electrically close but not equivalent thermally.
A communication IC may pass basic checks but still require firmware, layout, or validation attention.
In a consumer product with a short lifecycle, design changes may happen quickly. In industrial control equipment, a board may need repeat production, spare parts, and service support for years.
That is why BOM control should define:
- manufacturer part numbers
- approved alternates
- critical components
- long-lead or lifecycle-risk items
- customer approval rules for substitution
- component traceability expectations
- firmware or configuration dependency where relevant
A reliable build does not depend on silent substitutions.
If a component must change, the buyer and EMS partner should understand whether that change affects assembly, testing, firmware, thermal behavior, mechanical fit, or field service.
Treat DFM and DFT as Reliability Work, Not Only Manufacturing Preparation
Design for manufacturing is often treated as a way to improve yield or reduce rework. That is true, but for industrial control board assembly, DFM also protects reliability.
A board can be electrically correct and still be difficult to assemble, inspect, test, or install.
Common review points include:
pad geometry and solderability
component spacing
thermal relief and high-current areas
polarity and orientation clarity
connector placement
mechanical clearance
mounting hole position
coating keep-out areas
access to programming headers
access to test points
Design for testability is just as important.
If the board needs ICT, flying probe, boundary scan, functional testing, or fixture-based validation, test access should be considered before the PCB is fabricated. Test points, connector access, programming headers, and fixture clearance cannot always be added later without redesign.
This is one practical difference between a working prototype and a reliable industrial control board assembly plan.
The prototype asks: "Does the board work?"
The production plan asks: "Can we build it, inspect it, test it, and repeat it under controlled conditions?"
Plan Mixed Technology Assembly Before Production Starts
Many industrial control boards are not pure SMT boards.
They often combine fine-pitch ICs, passive components, relays, terminal blocks, power connectors, transformers, fuses, headers, large capacitors, optocouplers, and communication ports on the same PCBA.

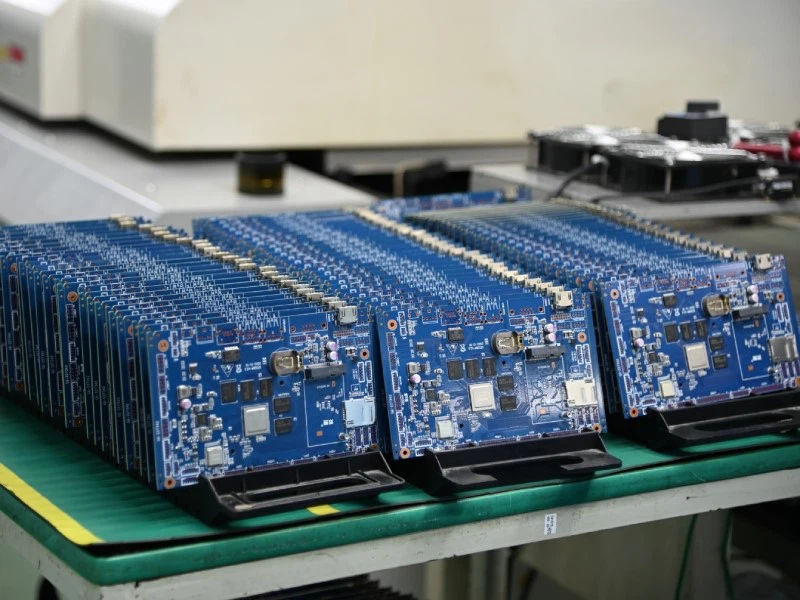

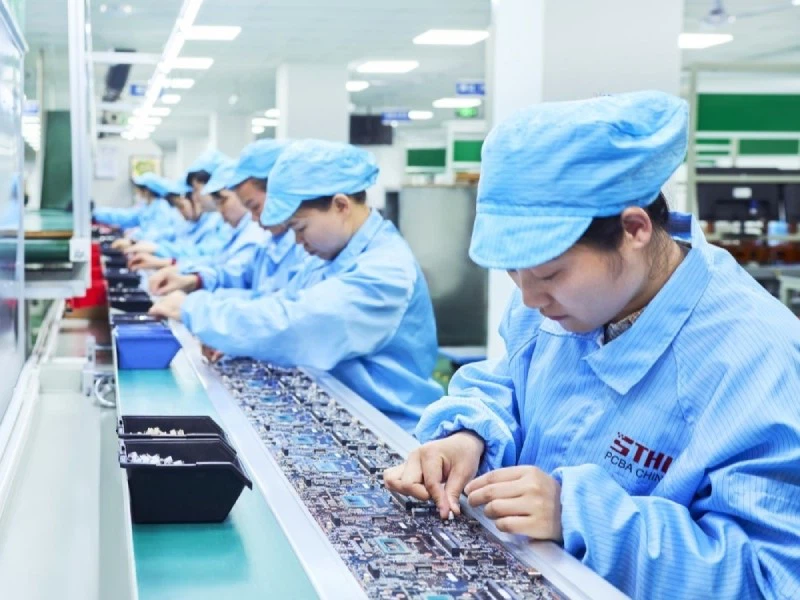

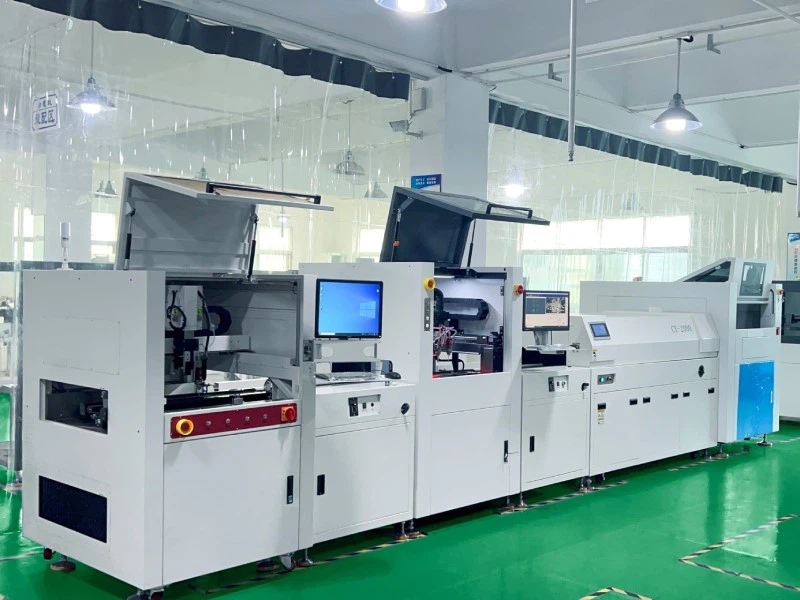

That means the assembly process may include:
- solder paste printing
- SMT placement
- reflow soldering
- through-hole insertion
- selective soldering or wave soldering
- manual operations for special parts
- connector alignment checks
- post-solder inspection
- cleaning or coating where specified
The process route matters because each step can introduce a different reliability risk.
A tall connector may need alignment control.
A heavy relay may need careful solder and mechanical review.
A terminal block may be electrically correct but difficult to wire if it is tilted.
A through-hole joint may look acceptable from one side but still require proper solder fill and inspection.
For reliable industrial control board assembly, mixed technology PCB assembly should be planned before production, not adjusted unit by unit during the build.
A prototype can sometimes be rescued by a skilled technician. A repeatable industrial build should not depend on that.
Make Connector and Field-Wiring Areas a Reliability Focus
In industrial control systems, connectors are often where the board meets the real world.
Terminal blocks, RJ45 ports, D-sub connectors, pin headers, pluggable connectors, cable harness interfaces, and power input connectors may face installation force, cable movement, field wiring, vibration, or repeated service access.
That makes connector handling one of the most practical reliability requirements.
Buyers and EMS teams should pay attention to:
- connector orientation
- solder joint quality
- mechanical support
- field wiring direction
- cable strain relief
- clearance around connectors
- mating connector compatibility
- enclosure or panel interference
- label visibility after assembly
The issue is rarely just whether the connector can be soldered to the board.
The real question is whether it can be soldered, inspected, wired, installed, serviced, and repeated without creating stress on the PCBA.
For industrial control boards, connector reliability is often manufacturing reliability in disguise.
Specify IPC Class and Soldering Expectations Clearly
IPC standards give buyers and manufacturers a shared language for assembly quality.
IPC-A-610 is commonly used to define acceptability criteria for finished electronic assemblies. J-STD-001 is more process-oriented, covering soldering materials, methods, process control, and verification requirements.
In practice, both references can matter. One helps define what the finished assembly should look like. The other helps define how the soldering process should be controlled.
But they still need to be specified correctly.
Not every industrial control board automatically requires IPC Class 3. Some industrial boards may be suitable for Class 2 or customer-defined requirements. Class 3 may be appropriate for safety-related, hard-to-service, or high-reliability applications, but it should not be assumed by default.
The important point is simple: the required acceptance level should be defined before production starts.
A purchase order that only says "IPC compliant" may not be clear enough. Buyers should specify the required acceptance class, any customer-specific criteria, coating requirements, cleanliness expectations, and rework limitations where relevant.
A supplier should not have to guess what "reliable assembly" means.
Match Inspection Scope to Actual Assembly Risk
Inspection should follow risk, not habit.

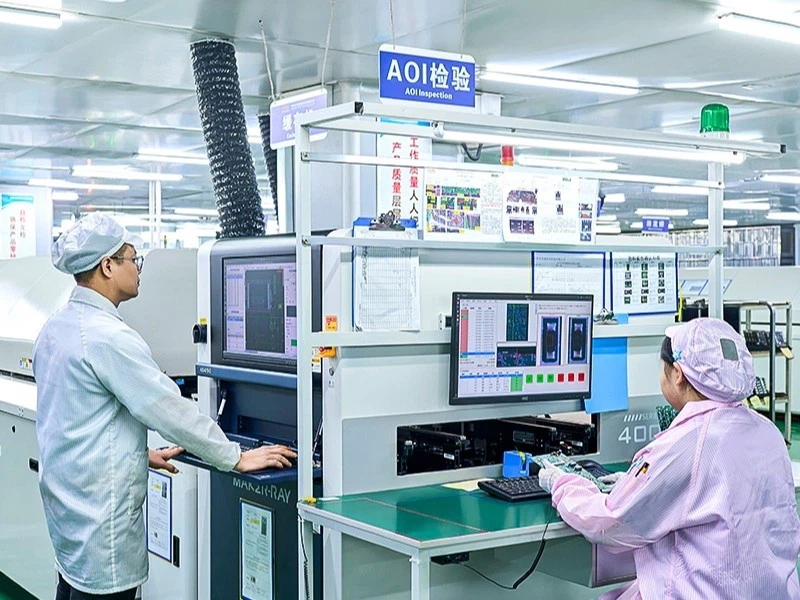

Automated optical inspection is useful for placement, polarity, missing components, solder defects, and visible surface-mount conditions. X-ray inspection may be useful for hidden solder joints such as BGA, QFN, LGA, or certain bottom-terminated packages. Visual inspection still matters for through-hole joints, connectors, coating, labels, mechanical features, and special assembly conditions.
A reliable inspection plan should consider:
component package type
solder joint visibility
connector and terminal block risk
through-hole soldering quality
polarity-sensitive components
high-current or power areas
customer-specific workmanship criteria
whether rework history needs to be recorded
A simple industrial interface board may not need every inspection method available. A board with hidden solder joints, power sections, relays, and communication ports may need a stronger inspection plan.
More inspection is not always the answer. The inspection scope should match the defect risk.
Functional Testing Must Prove the Board's Job
A power-on test is not the same as functional validation.
Industrial control boards often need to perform specific tasks: read inputs, switch relays, drive outputs, communicate with a host, load firmware, respond to sensors, or work with a control system.
A practical Testing and Inspection plan should define:
- what function must be proven
- what fixture or cable is required
- whether firmware programming is needed
- what signal or load condition should be simulated
- what result counts as pass or fail
- whether test data should be recorded
- what happens after rework
- whether retesting is required
The test must be repeatable by production staff, not only by the design engineer who understands the board by memory.
That is a common difference between a working prototype and a reliable industrial control board assembly process.
For some boards, basic electrical confirmation is enough. For others, functional testing, ICT, fixture-based validation, firmware programming, and communication checks may be necessary. The correct scope depends on the board's function and risk.
Define Coating, Cleaning, and Protection Requirements Where the Environment Demands Them
Not every industrial control board needs conformal coating.
But if the board will face humidity, condensation, dust, chemical vapor, outdoor exposure, or other contamination risk, coating should be discussed before assembly. Coating is not only a material choice. It affects masking, connector areas, test points, rework, inspection, and sometimes the order of the manufacturing process.
Buyers should clarify:
- whether coating is required
- what areas must not be coated
- whether connectors, switches, test pads, or programming headers need masking
- whether cleaning is required before coating
- whether the coating needs visual inspection or thickness control
- how rework and retesting should be handled after coating
Underfill, staking, or additional mechanical reinforcement may also be considered for selected components, especially when vibration, package size, or mechanical stress makes it relevant.
Protection requirements are most effective when they are planned early.
If they are added after the board is already assembled, they can interfere with testing, connector access, labels, or serviceability.
Treat First Article Inspection as a Production Gate
First article inspection should not be treated as paperwork after the build.
For industrial control board assembly, first article inspection helps confirm that the first production units match the documented requirements before the rest of the batch proceeds.
A useful first article review may include:
- component placement verification
- solder joint inspection according to the specified acceptance class
- connector alignment review
- X-ray images where hidden joints are involved
- process parameter records where required
- firmware programming confirmation
- functional test result
- label and traceability format check
- mechanical or fixture-related observations
The principle is simple.
First article inspection should answer whether the batch can continue under the same assumptions.
If production continues while first article questions remain unresolved, the value of FAI is weakened.
Plan Traceability Before the First Batch Ships
Traceability is easy to ignore when everything works.
It becomes important when a field issue appears, a component changes, a firmware version is updated, or a repeat order needs to match a previous build.
For reliable industrial control board assembly, traceability may include:
- PCB revision
- BOM revision
- approved alternate records
- component lot information where required
- serial number or batch label
- firmware version
- test result
- inspection record
- rework and retest history
- packaging or shipment batch
The right level of traceability depends on the application. A simple internal module may need a lighter record set. A field-installed controller or industrial communication board may need more disciplined records.
The mistake is not choosing a simple traceability package.
The mistake is leaving traceability undefined.
If the buyer wants reliable repeat production, the build record should make future questions easier to answer, not harder.
Check Mechanical and Box-Build Readiness Early
An industrial control board rarely lives alone.
It may be installed into a control cabinet, metal enclosure, DIN-rail module, industrial computer, gateway, machine panel, or complete system. That means mechanical details can affect assembly reliability.
Before production, buyers should review:
- mounting holes
- connector direction
- cable exit path
- enclosure clearance
- heat-generating components
- label position
- test point access
- grounding or chassis contact
- coating keep-out areas
- harness routing
A PCBA can pass electrical test and still create integration problems later.
For example, a connector may be blocked by the housing. A label may be hidden after installation. A cable may pull against a soldered connector. A test point may become inaccessible after the board is installed.
That is why box build readiness should be considered early, even when the first order is only for board-level assembly.
Board-level success does not always mean system-level readiness.
What Should Be Written into the RFQ or Purchase Order?
The most reliable requirements are the ones that are visible before production starts.
A practical RFQ, purchase order, or quality agreement may define:
|
Requirement Area |
What to Clarify |
|---|---|
|
Application role |
What the board does and where it will operate |
|
Acceptance standard |
IPC class or customer workmanship criteria |
|
Soldering process |
J-STD-001 expectation where required |
|
BOM control |
MPNs, approved alternates, substitution rules |
|
Material notes |
High-Tg FR-4, copper weight, coating, cleaning, or special fabrication notes where needed |
|
Assembly route |
SMT, through-hole, selective soldering, wave soldering, special handling |
|
Connector reliability |
Orientation, strain, clearance, field wiring, mating parts |
|
Inspection |
AOI, visual inspection, X-ray where needed, special checks |
|
Functional testing |
Firmware, fixture, I/O, relay, communication, pass/fail criteria |
|
Traceability |
Revision, serial number, test record, batch record |
|
Integration readiness |
Enclosure, harness, label, grounding, test access |
|
Documentation |
Assembly drawing, test instruction, process notes, packaging rules |
This checklist does not make every project heavier.
It helps buyers match assembly requirements to the board's real risk.
Industry Signal: Reliability Is Becoming a System-Level Expectation
Industrial control hardware is becoming more connected, more software-defined, and more integrated into larger automation systems.
That does not mean every industrial control board needs the same validation package. It does mean buyers are paying more attention to build repeatability, firmware control, traceability, sourcing stability, and equipment-level reliability.
For EMS work, the practical takeaway is simple:
Reliable assembly is no longer only about solder joints. It is about whether the board can be sourced, assembled, tested, documented, integrated, and repeated under controlled conditions.
That is the standard many industrial OEMs increasingly expect from their manufacturing partners.
Where STHL Fits in This Discussion
For OEM buyers preparing industrial control board projects, Shenzhen STHL Technology Co., Ltd. can review requirements from a PCB Assembly perspective and help identify which assembly, sourcing, testing, traceability, and integration details should be clarified before production.
Depending on the project, this may involve component sourcing review, SMT and through-hole assembly planning, connector handling, inspection planning, functional test preparation, or box-build readiness.
The goal is not to overcomplicate every industrial control board.
A simple board should stay simple.
A high-risk board should not be under-specified.
The right assembly plan depends on the board's function, environment, documentation needs, test method, and failure impact.
Conclusion
Reliable industrial control board assembly is not created by one final inspection step.
It comes from controlling the full build chain: component sourcing, DFM/DFT review, assembly routing, connector handling, soldering quality, IPC expectations, inspection scope, functional testing, coating or protection where required, traceability, documentation, and integration readiness.
For OEM buyers, the practical lesson is clear: define reliability requirements before production starts, not after the first batch reveals the gaps.
Need an industrial control board assembly or PCB Assembly quotation? Submit your files through Request a Quote or contact STHL directly at info@pcba-china.com
